Description
The outside of the envelope is poly-film and aluminum foil, inside is bubble film. It is mainly used in the post office delivery, logistics, express, craft glass, disks, tapes, tape, DVD, gifts,etc. It would be very helpful to protect the products, as well as preventing the products from damage during transit.
Top speed reach 20-150 pcs/min; highout; stable perforance; securiet and relability.
Application
It would be very helpful to protect the products, as well as preventing the products from damage during transit.
Feature:

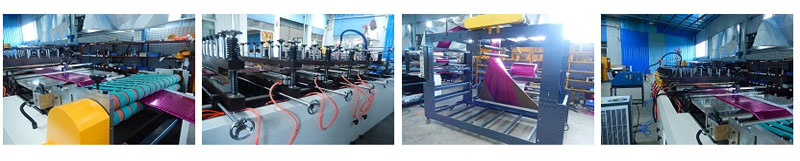

Bubble wrap bag
machine can be used to produce envelops with an outer layer of Kraft paper and
an inner layer of bubble film. The outer layer can also be PE film, aluminum
foil and pearlized film.
Technical Parameters
|
Production Capacity |
50-120 per minute |
|
Minimum size of envelope |
100*100mm |
|
Maximum size of envelope |
600*600mm |
|
Power Supply |
380V, 50Hz/3 phases |
|
Maximum Power |
25KW |
|
Effective Power |
8-13KW |
|
Machine size without Kraft paper composite rack |
Length:10m; Width: 2.5m; Height: 2.8m |
|
Machine size with Kraft paper composite rack |
Length: 18m; Width 2.5m; Height: 2.8m |
|
Weight |
6500kg |
